In this tutorial we will detail how attainable regions can be computed for a single mixed suspension mixed product removal (MSMPR) crystallizer at steady state. For the sake of simplicity, we will do this based on synthetic data, though originating from case study published by Power et al. (2015)

We proceed by the following steps:

• Background on the MSMPR crystallizer model
• Specification of model solubility, kinetics and material constants and generation of synthetic data
• Parameter estimation
• Generating the attainable region and exploring it

Background: Mixed Suspension Mixed Product Removal Crystallizer Model

The population balance equation describing the crystal size distribution in an MSMPR crystallizer governed by nucleation and growth can be written as:

\[\frac{\partial n(L,t)}{\partial t} = -\frac{\partial G(S,T)n(L,t)}{\partial L} - \frac{n(L,t)}{\tau}\]

where $n(L,t)$ is the crystal size distribution, such that $n(L,t)\mathrm{d}L$ is the number of crystals with sizes between $L$ and $L+\mathrm{d}L$ per volume of solution (it therefore has units of [m$^{-4}$]). $t$ is time, $L$ is crystal size, $G(S,T)$ is the supersaturation- ($S$) and temperature-dependent ($T$) growth rate (in [m s$^{-1}$]) and $\tau$ is the mean residence time of the crystallizer (determined by the ratio of the volume of solution inside the crystallizer, $V$, and the flow rate of the particle-free inlet, $Q$ [m$^3$ s$^{-1}$]). With the typical assumption that nucleation occurs at negligibly small particle size (treated as $L=0$), a boundary condition $n(L=0,t) = B(S,T,M_\mathrm{T})/G(S,T)$ completes the description of the crystal phase in the crystallizer. $B(S,T,M_\mathrm{T})$ is the nucleation rate in [m$^{-3}$ s$^{-1}$] and $M_\mathrm{T}$ is the magma/suspension density in [kg m$^{-3}$].

At steady state and with a growth rate that is not size-dependent, this becomes:

\[0 = -G(S,T)\frac{\mathrm{d} n(L)}{\mathrm{d} L} - \frac{n(L)}{\tau}\]

This is a separable first order differential equation and thus can be directly solved to obtain:

\[n(L) = \frac{B(S,T,M_\mathrm{T})}{G(S,T)}\exp\left(-\frac{L}{G\tau}\right)\]

We define the supersaturation, $S$ as:

\[S = \ln \left(\frac{C_\mathrm{ss}}{C_\star(T)}\right)\]

where $C_\star(T)$ is the solubility. Therefore, the nucleation and growth rates need to be calculated at the steady state concentration in the crystallizer. This couples the liquid phase and the crystalline phase to each other via the overall mass balance:

\[C_\mathrm{f} = M_\mathrm{T} + C_\mathrm{ss} \]

where $C_\mathrm{f}$ is the feed concentration and $C_\mathrm{ss}$ is the steady state concentration, both in [kg m$^{-3}$]. The suspension density can be calculated from the steady state crystal size distribution:

\[\begin{align} M_\mathrm{T} &=&& k_\mathrm{v}\rho_\mathrm{c}\int\limits_0^\infty L^3 n(L) \mathrm{d} L \\ &=&& k_\mathrm{v}\rho_\mathrm{c}\int\limits_0^\infty L^3 \frac{B(S,T,M_\mathrm{T})}{G(S,T)}\exp\left(-\frac{L}{G\tau}\right) \mathrm{d} L \\ &=&& 6k_\mathrm{v}\rho_\mathrm{c} τ^4 B G^3 \end{align} \]

where $\rho_\mathrm{c}$ is the density of the crystals in [kg m$^{-3}$] and $k_\mathrm{v}$ is the volume shape factor of the crystals, defined so that $V_\mathrm{c} = k_\mathrm{v}L^3$ where $V_\mathrm{c}$ is the volume of a crystal with characteristic size $L$. This means, for example, that $k_\mathrm{v} = 1$ for cubes with side length $L$, $k_\mathrm{v} = \pi/6$ for spheres of diameter `$L$, $k_\mathrm{v} = \left(6\sqrt{2}\right)^{-1}$ for regular tetrahedra with edge length $L$, etc.

See Solving root finding problem for details on how AttainableRegionTutorial.jl solves the mass balance and population balance equation numerically.

Generation of synthetic data using a specified model

We start out by defining a description of the "system" we are crystallizing. This includes defining material constants, such as the crystal density and the volumetric shape factor, as well as defining an expression of the solubility against temperature and the kinetics of nucleation and crystal growth.

As outlined in the book chapter, we will use

Supplying custom kinetics and thermodynamics

using AttainableRegionTutorial

#Initialize System

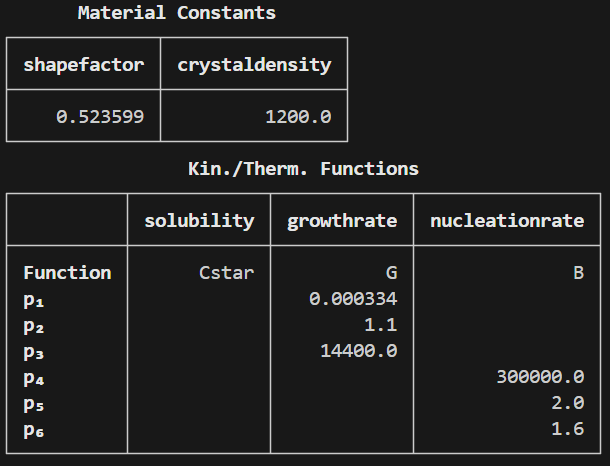

system = SystemSpecification()

#generate dataset
residence_times = [15.0, 20.0, 30.0, 60.0, 30.0, 50.0, 60.0, 80.0, 40.0, 40.0].*60 #converted to seconds
temperatures = [20.0, 20.0, 20.0, 20.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0]
feed_concentrations = [100.0, 100.0, 100.0, 100.0, 100.0, 100.0, 100.0, 100.0, 80.0, 60.0]
dataset = Dataset(residence_times, temperatures, feed_concentrations, system)

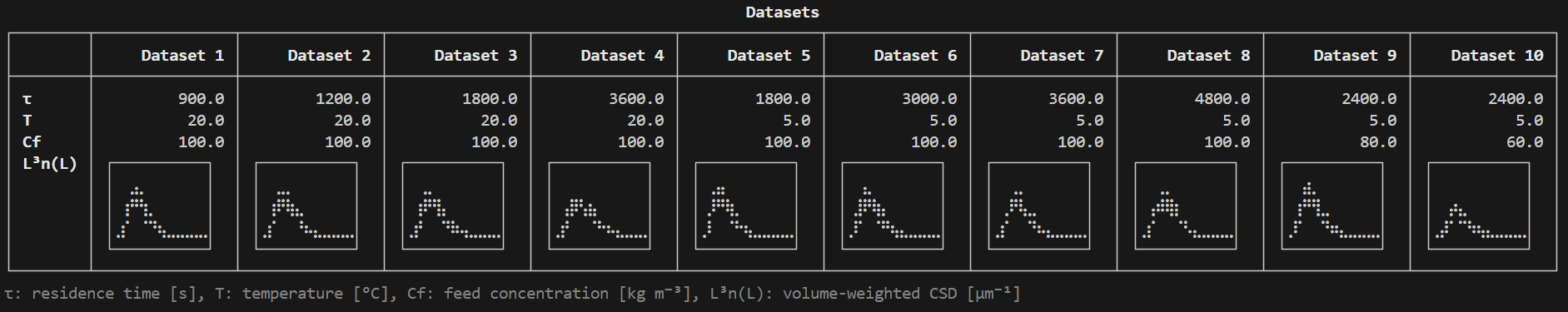

After executing the last command, you will see a summary of the dataset, as shown below. Note that the Unicode ("dot") plots show volume-weighted crystal size distributions (CSDs) and are meant to provide a quick overview of the CSDs contained within the dataset. They are depicted to scale, i.e., broader distributions have lower peaks and lower areas below the curves represent lower suspension densities.

While nice, we may want to have some more professional looking plots of the CSDs. We first recreate the figure depicting the CSDs as shown in the book chapter.

#make plot of data
#Re-create tutorial figure

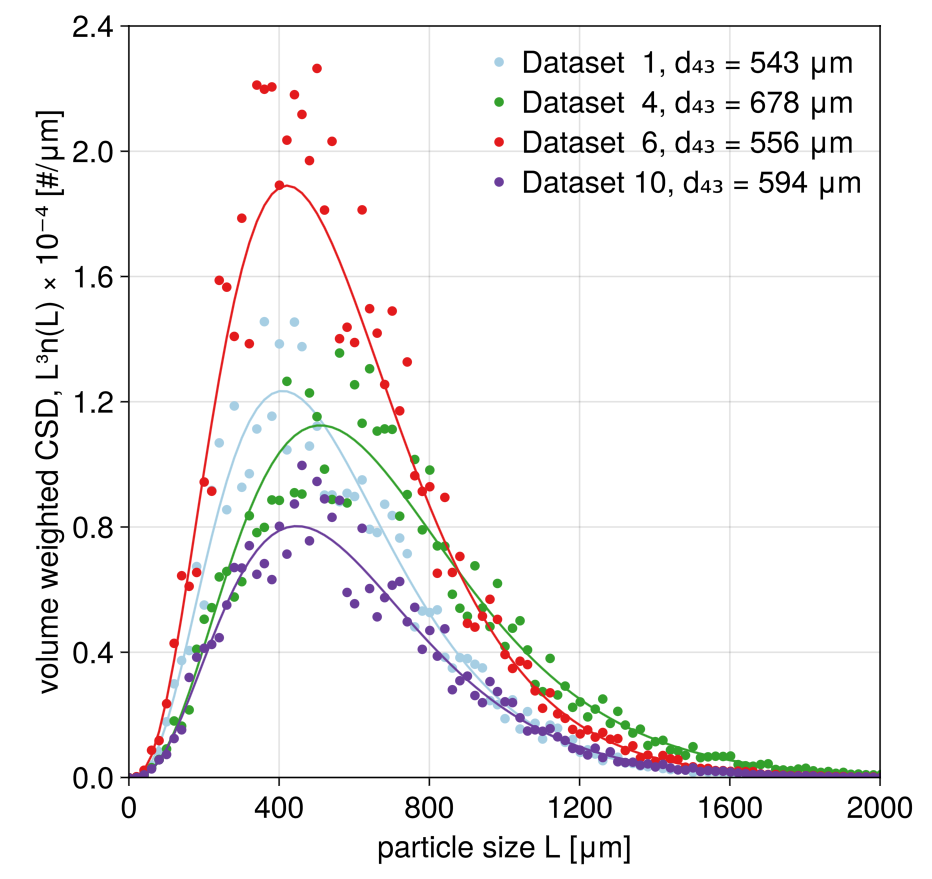

fig = plot_CSDs(dataset, system, ids = [1,4,6,10])

#Now plot all the data in separate plots

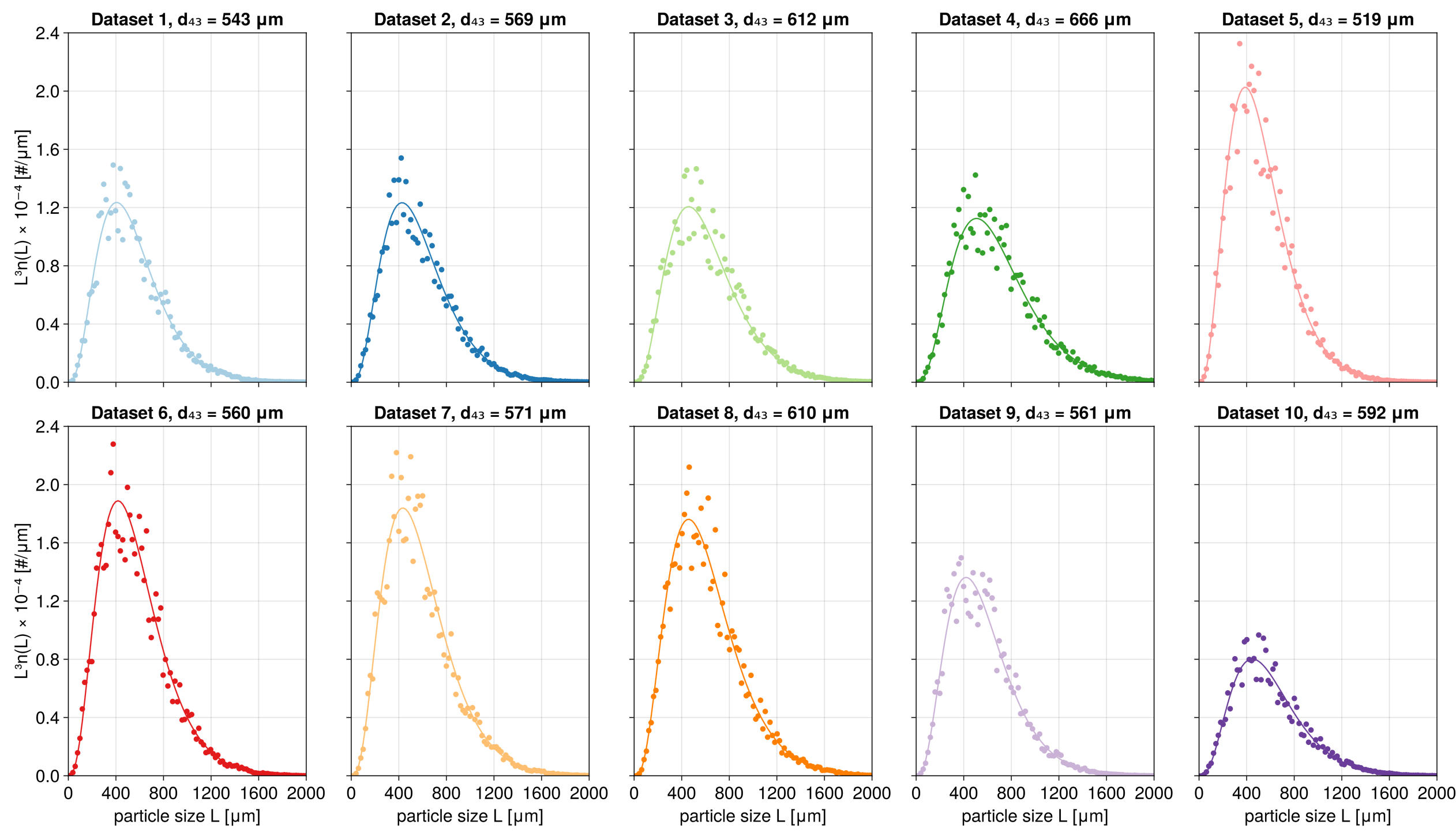

fig2 = plot_CSDs(dataset, system, mode = :separate, figure = (fontsize = 20,
    figure_padding = 30))

Estimating parameters: fitting a model to the synthetic data

We will now estimate the kinetic parameters from the dataset. For this purpose, we are using the function estimate_parameters(). We will run this with the default values in this case, but see the page Tuning parameter estimation for ways to tune the parameter estimation procedure. Also consult the docstring of the estimate_parameters function by writing ?estimate_parameters in your Julia session.

estsystem = estimate_parameters(system, dataset)

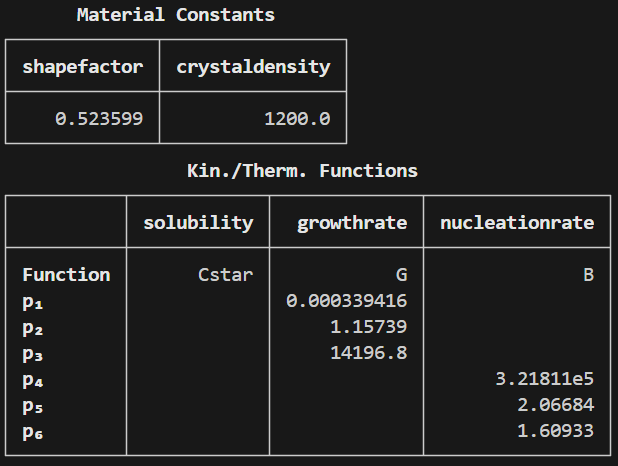

estsystem should be a new system specification that contains the estimated parameters, which will be shown in the Julia session. It should look like this:

Note that the precise values may be slightly different based on the optimizer used when estimating the parameters and also on the precise noise added when generating the dataset above.

During the estimation procedure you will likely encounter warnings like this:

┌ Warning: The interval is not an enclosing interval, opposite signs at the boundaries are required.
└ @ BracketingNonlinearSolve C:\Users\thvt\.julia\packages\BracketingNonlinearSolve\Ucmxz\src\itp.jl:87

These are nothing to be concerned about. They stem for the particular way the root finding problem required to solve the PBE and mass balance together is implemented. For a deeper explanation, see Solving root finding problem

#Plot quality of fit
#Re-create tutorial figure

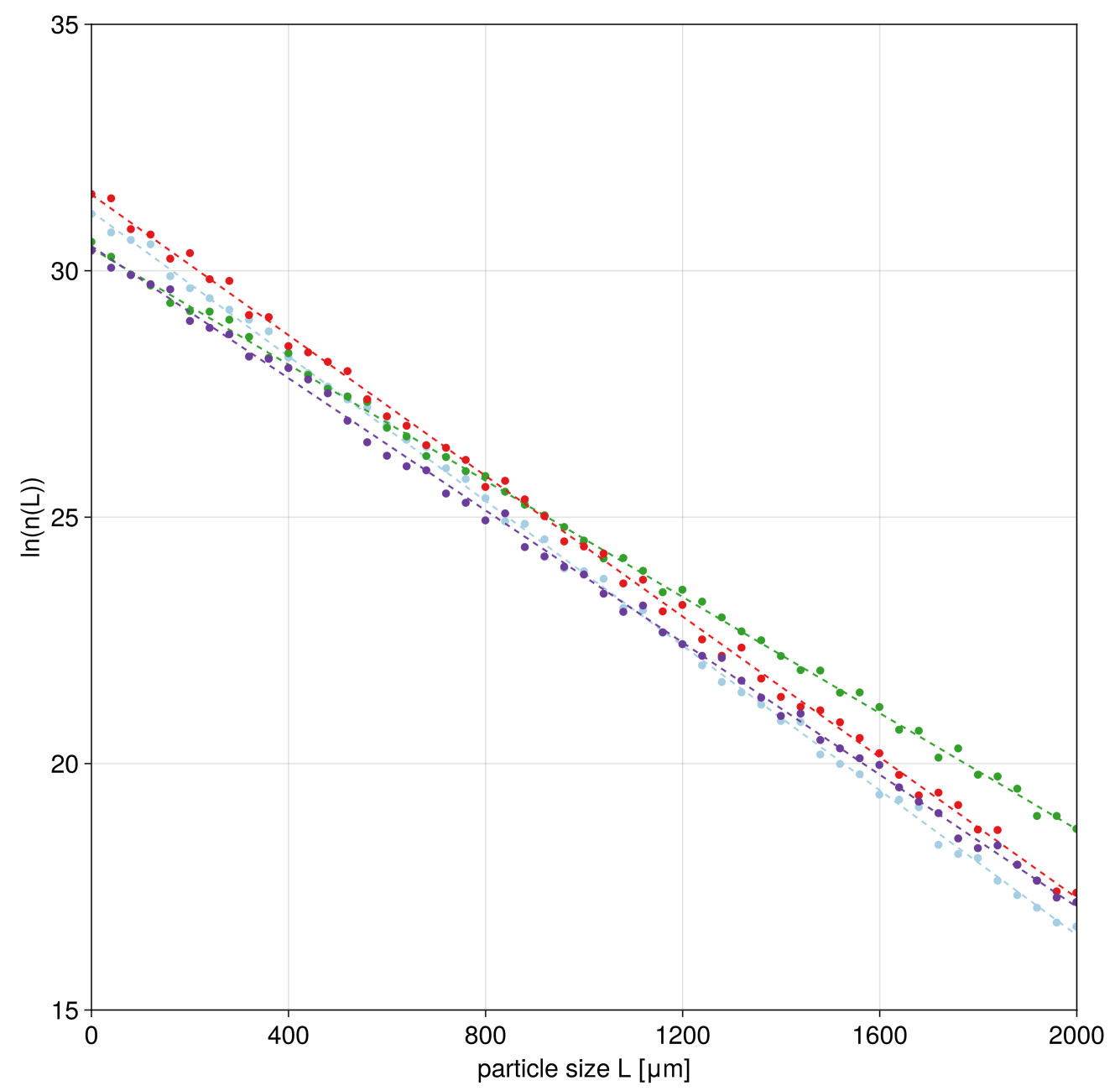

fig3 = plot_fit_quality(estsystem, dataset, ids = [1,4,6,10], mode = :combined,
    axislegend = false)

#Or plot all data
fig4 = plot_fit_quality(estsystem, dataset, mode = :separate)

TODO: insert plot with the separate fit qualities.

Generating an attainable region

We can now proceed to populate the attainable region by varying process conditions. The generate_attainable_region function allows to do this in an easy manner. Specifically, we vary the temperature in the crystallizer, the feed concentration, as well as the residence time. By default, the function selects reasonable ranges for these values for this case study. More information on this can be obtained by typing ?generate_attainable_region in your Julia session or directly here: generate_attainable_region. The function will return volume-weighted mean particle sizes at each operating point, d43 in [m], as well as productivity values P in [$\mathrm{kg} \mathrm{m}^{-3} \mathrm{s}^{-1}$].

#Generate data for the attainable region
conditions, d43, P = generate_attainable_region(estsystem, npoints_temperature = 50, npoints_feed_conc = 50,
        npoints_residence_time = 50)

Note that we have intentionally reduced the number of points investigated, so that the code finishes running quicker. The output in the book chapter was generated using $200 \times 200 \times 200$ points.

We can now plot all attainable combinations of mean particle sizes against productivity values in a static plot.

#Plot attainable region
#static plot for the tutorial.
#TODO: add code for fig5

In order to explore which operating condition generates which point in the attainable region, there is a dynamic analysis tool available:

#dynamic plot for exploring
fig6 = plot_attainable_region_dynamic(system, conditions, d43, P)

fig6 is an interactive figure. By left-clicking on specific points in the attainable (left) region plot, the volume-weighted CSD and the operating policy generating it are displayed in the middle and right plot, respetively. Multiple points can be compared using multiple left-clicks (up to a maximum of 5 - more clicks result in previously selecting point getting deselected). The functionality is showcased in the video below:

TODO: insert video showing the dynamic functionality
